Design of a Compacta Line Array 2×8" + 1 Tweeter

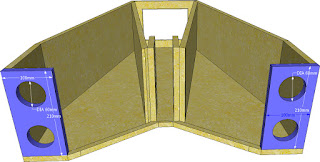

This project to be compact line array does not lose in efficiency, Comprising two 8-inch speakers and 200 watts each and great for outdoor or indoor systems, built with MDF or plywood 15mm requires a bit of skill in the art of joinery, with front ducts plays the bass medium very clearly, cover on the back can be 6mm MDF or with a 3mm iron plate where you put the driver and the plugs of the box.
| Base and top panel |  | |
| Back cover wirh opening panel |  | |
| Walls side panel |  | |
| Walls of strengthening internal |  | |
| Walls of driver panel |  | |
| Walls of pipeline panel |  | |
| Front walls of pipeline |  | |
| Baffles of speaker |  | |
| Back cover |  |
